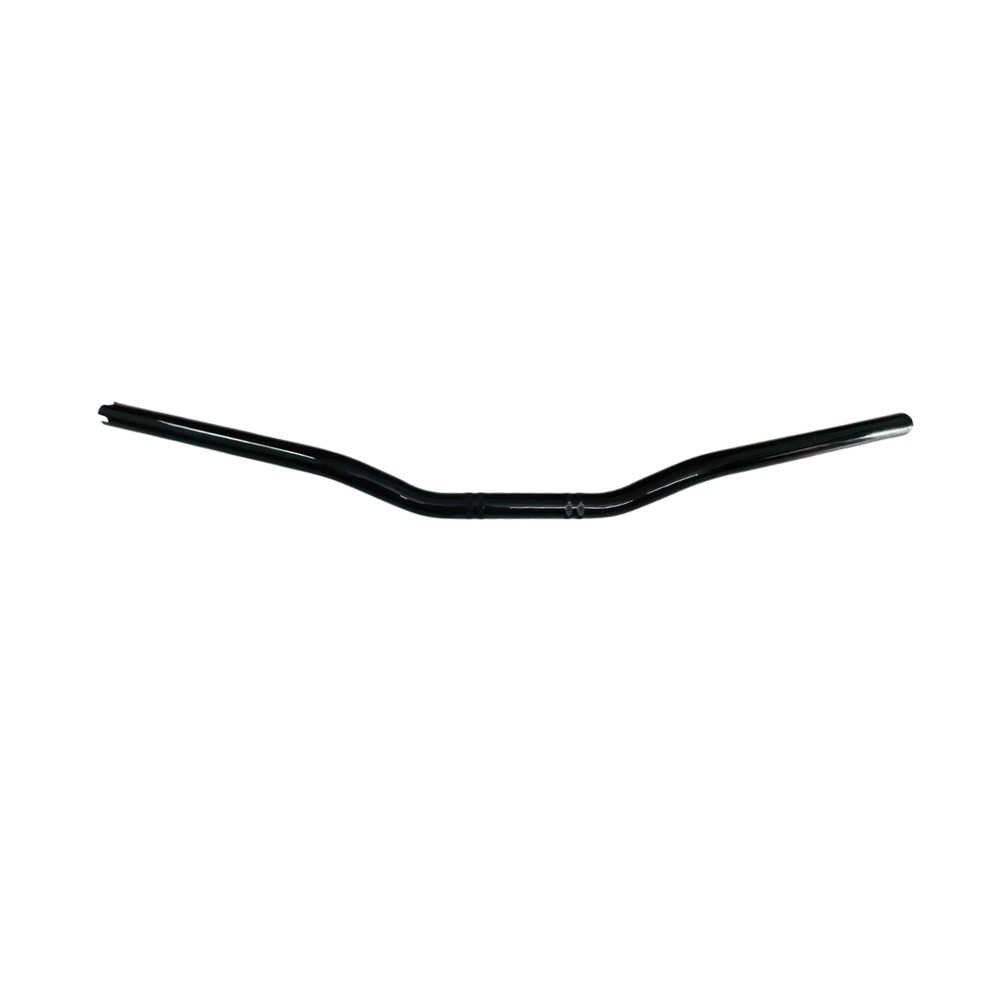

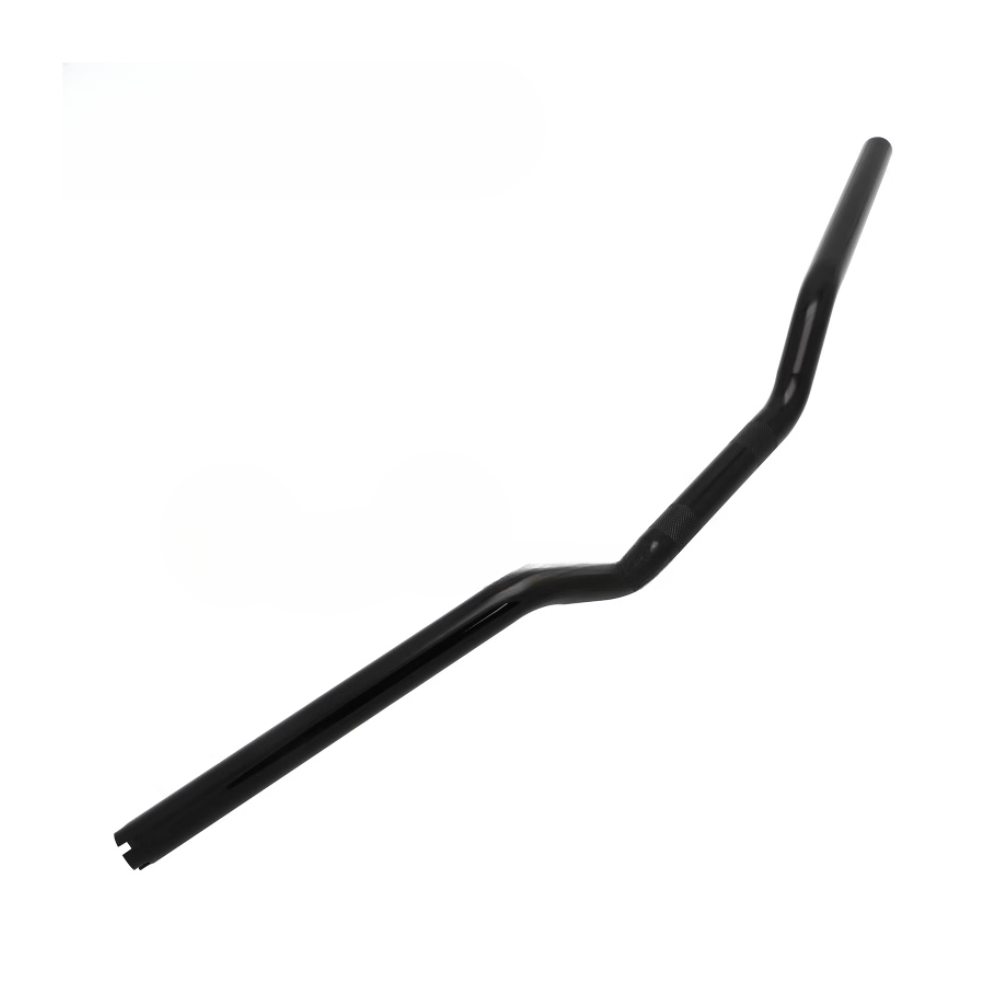

Black 1″ Clubstyle Harley handlebar – Touring, Softail, Dyna

Harley-Davidson Clubstyle 1 Inch Black Handlebar

Bring an aggressive look and superior comfort to your Harley-Davidson with this 1″ black design handlebar Clubstyle.

Designed for models equipped with throttle-by-wire, it combines robustness, ergonomics and radical style.

Main features

• Precision manufacturing: CNC bent seamless 1020 steel, 3 mm thickness, TIG welded reinforcement.
• Powdered black satin finish: resistant to UV, impacts and corrosion.
• Ergonomics designed for comfort: height 10″ • width 30″ • back 6″ – ideal for medium to tall riders.
• Ride by Wire Compatibility: 1″ central bore, left/right slots for internal harness + positioning holes for commodos.
• Direct mounting: compatible with original 1″ risers and controls without spacers.

Vehicle compatibility

Touring (TBW)

• 2008-2013: Electra Glide, Road King, Street Glide, Ultra Classic
• 2014-present: all Batwing & Sharknose (Road Glide) platforms, including CVO

Softail (TBW)

• 2018-present: Fat Boy, Heritage Classic, Street Bob, Low Rider / S / ST, Fat Bob, etc.

Dyna (ETC)

• 2012-2017: Street Bob, Super Glide Custom and other ETC equipped models

Facility (≈ 45 mins)

1. Remove the original handlebars, controls and master cylinder.
2. Pass the harness and TBW cable through the pre-drilled slots.
3. Position the handlebars in the risers, center and tighten to torque (22 N·m).
4. Replace the controls, adjust the angle of the levers and check the freedom of rotation.

Included in the kit

• 1 × black 1″ handlebar (pre-drilled, TBW compatible)
• Stainless steel safety wire + PDF installation guide (QR code)
