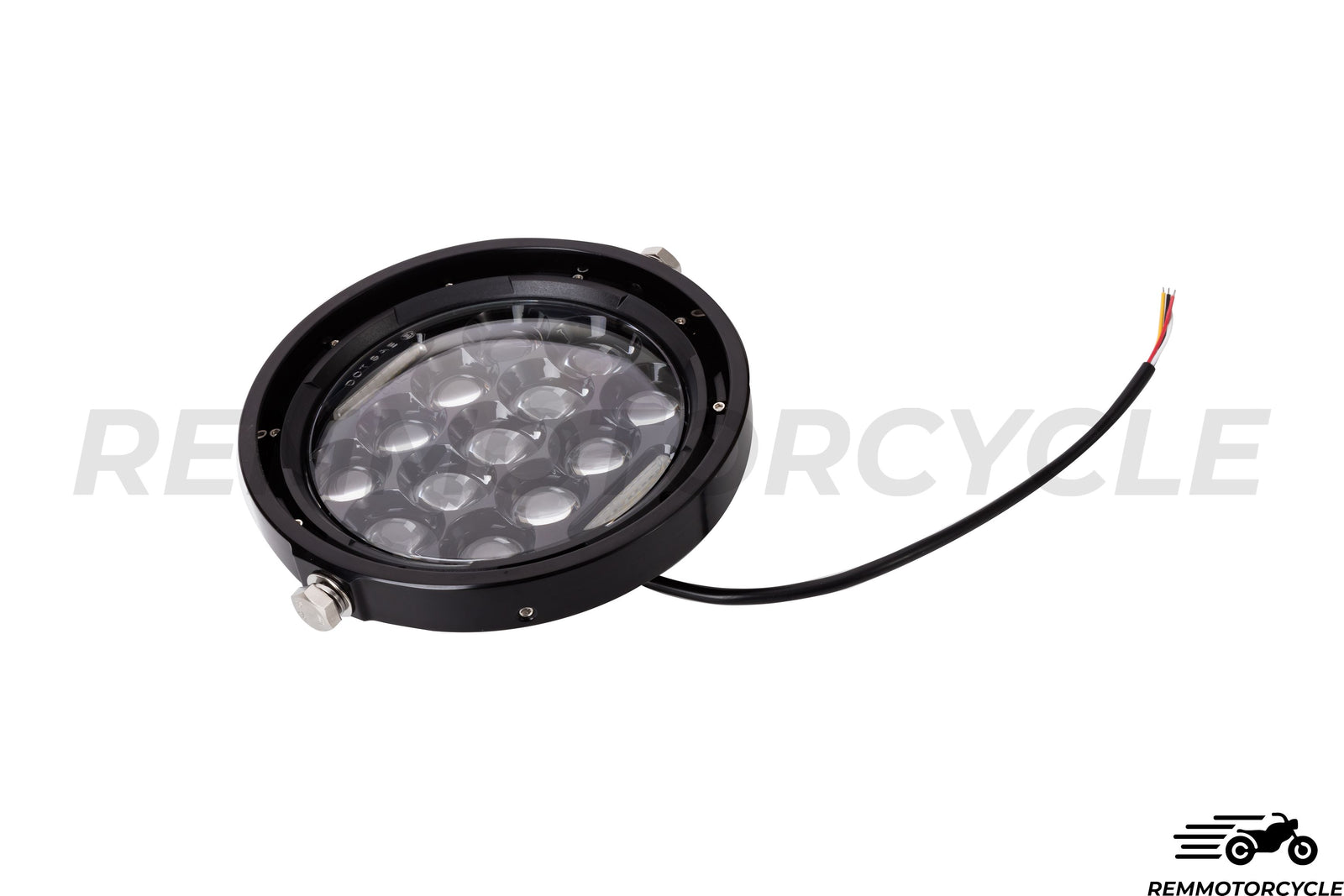

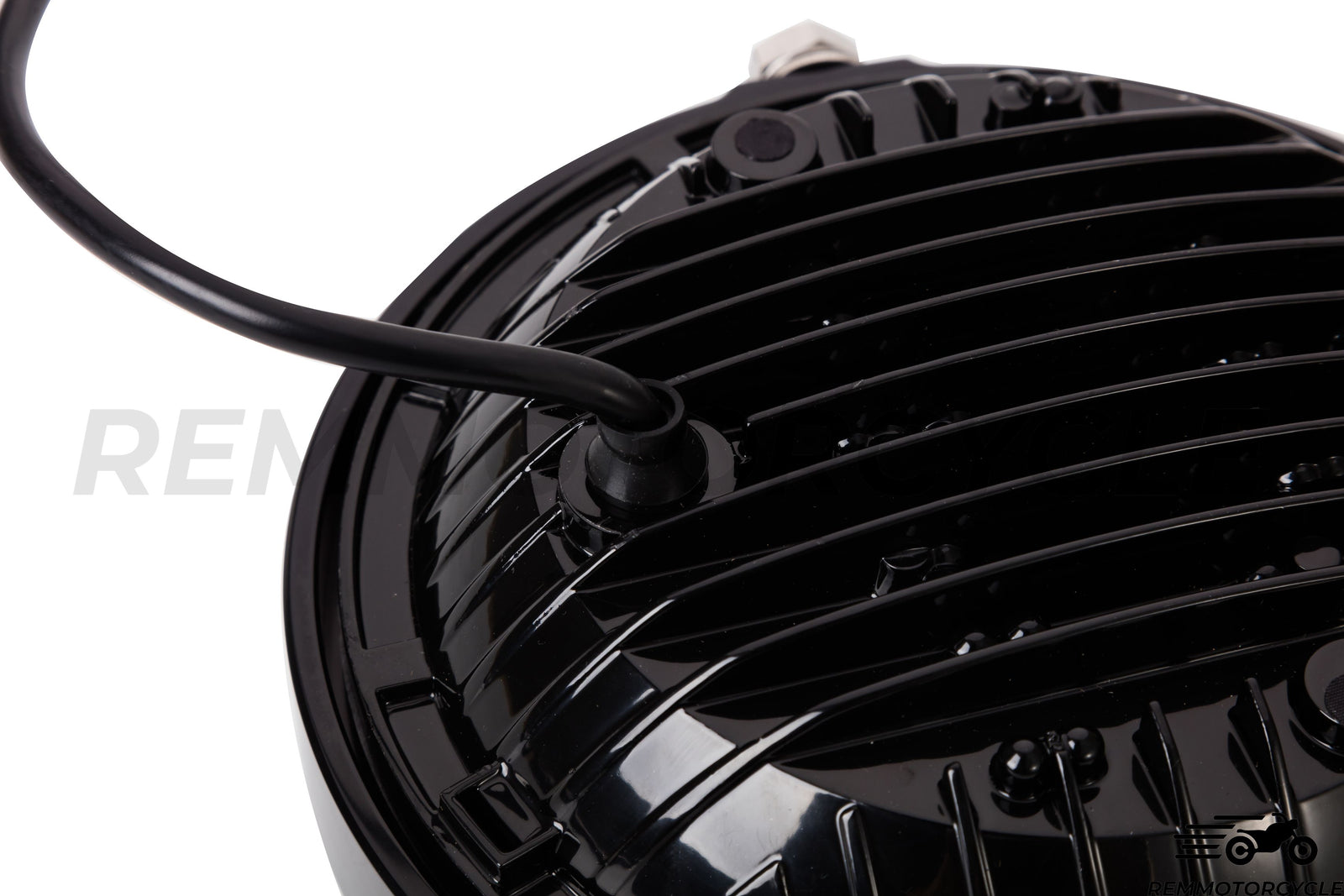

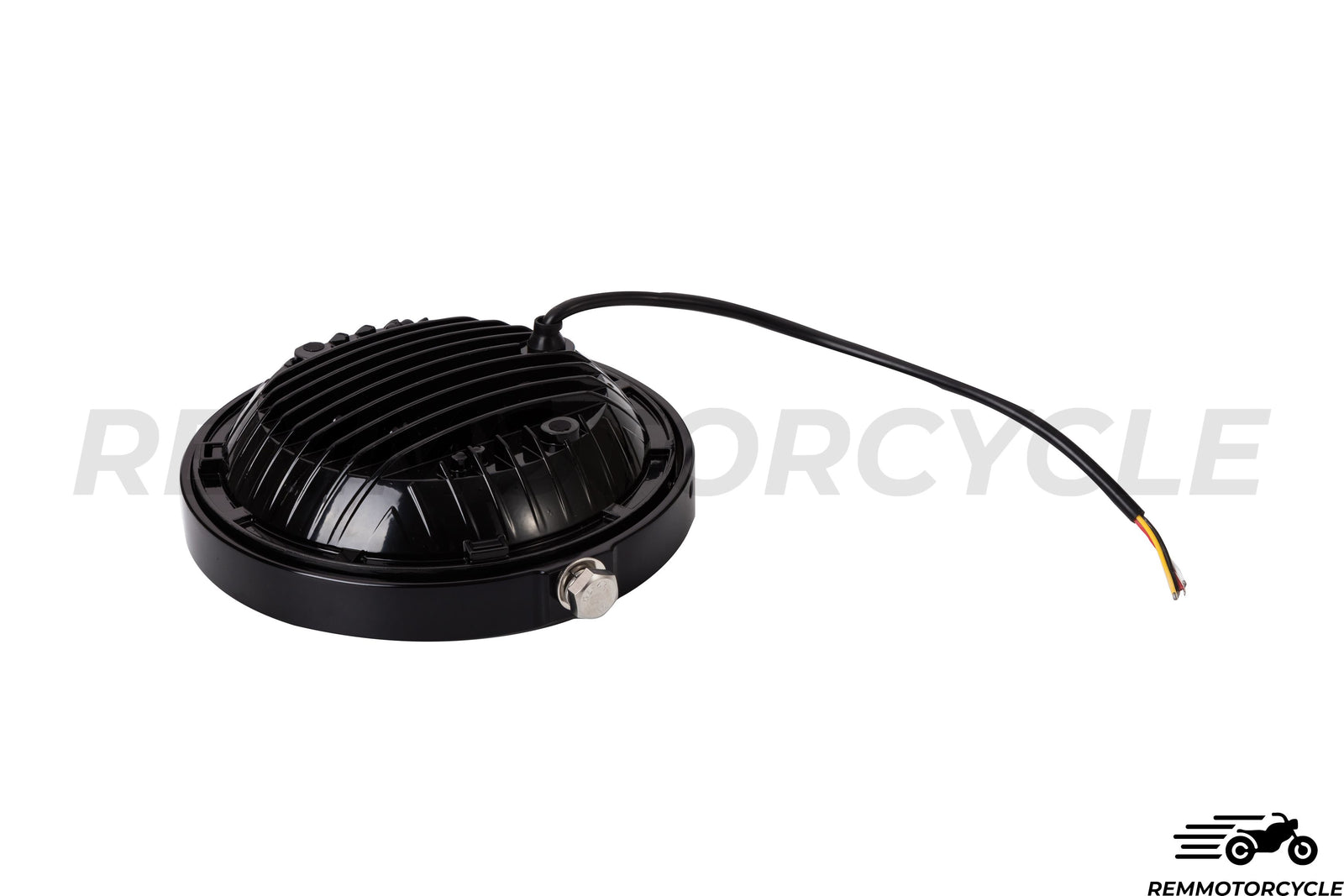

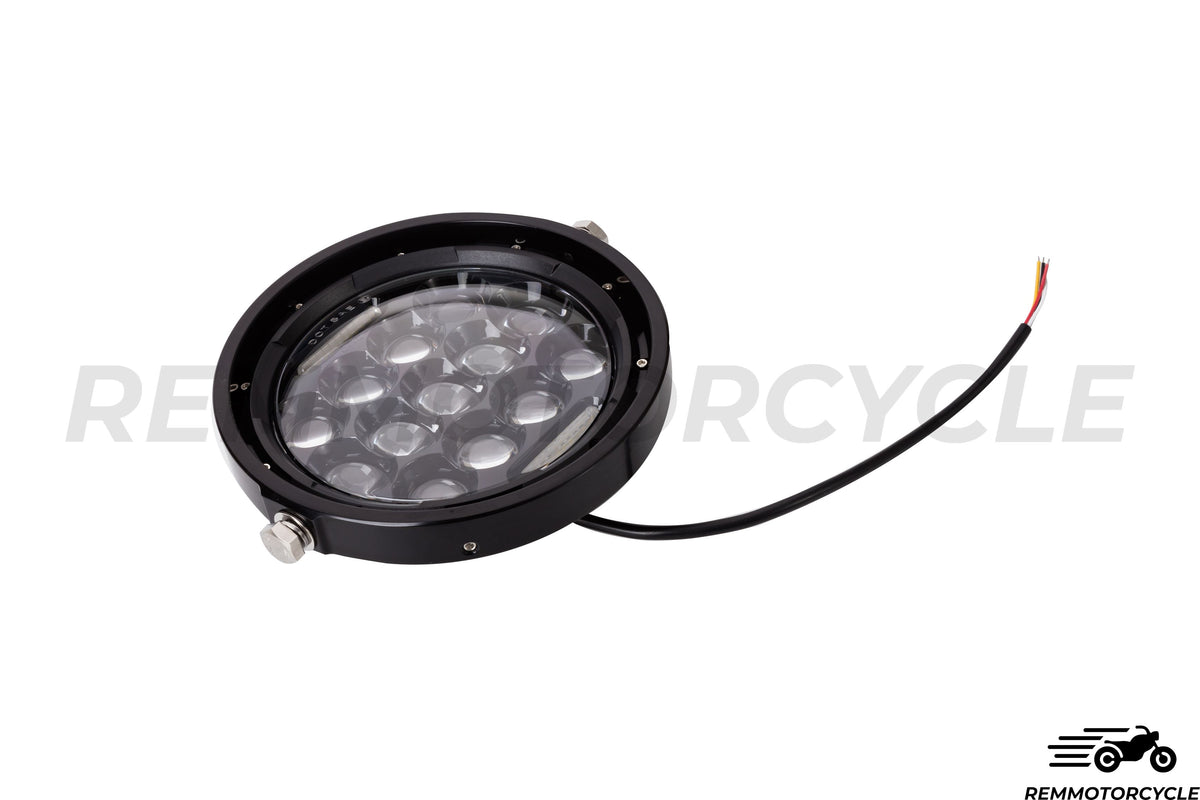

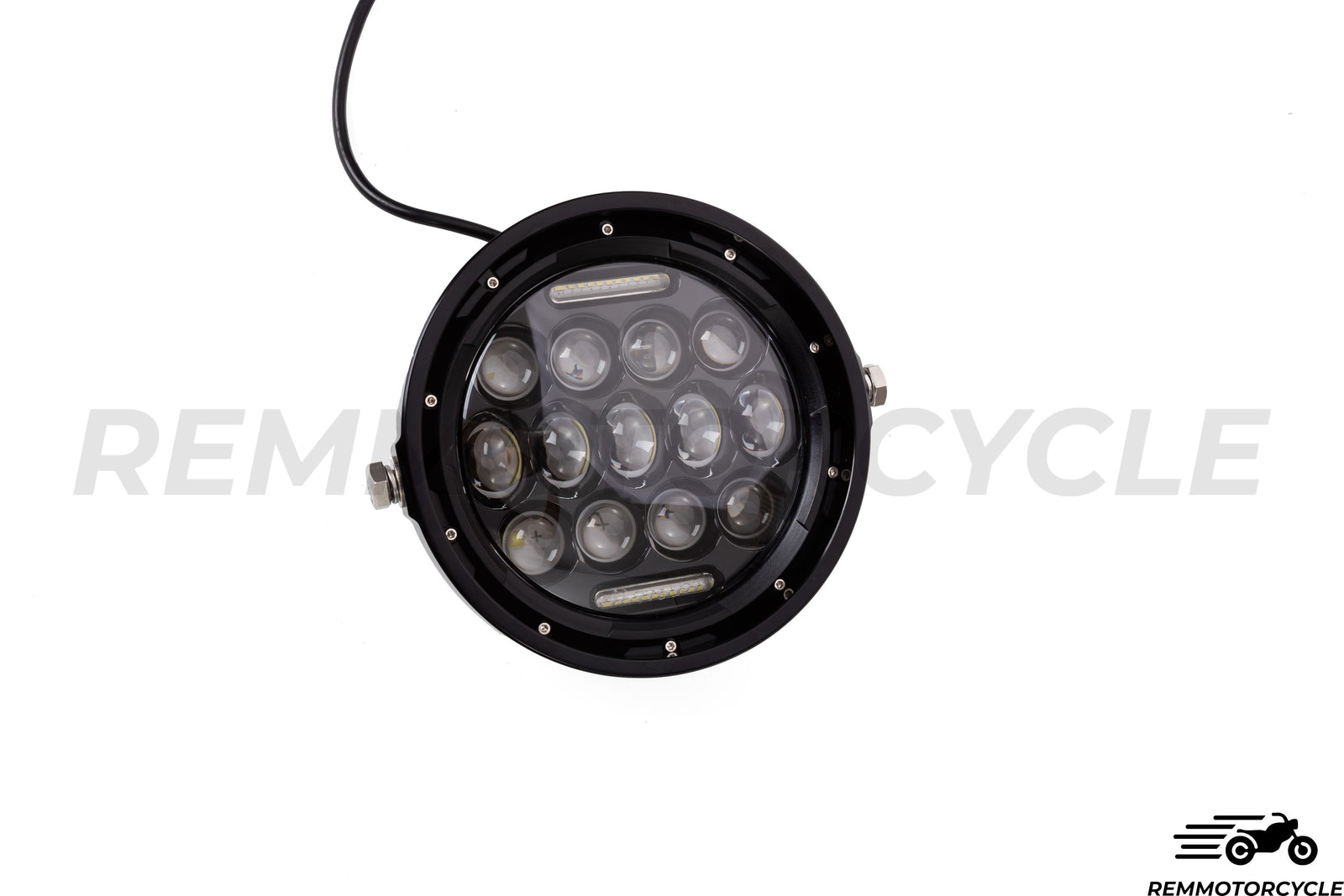

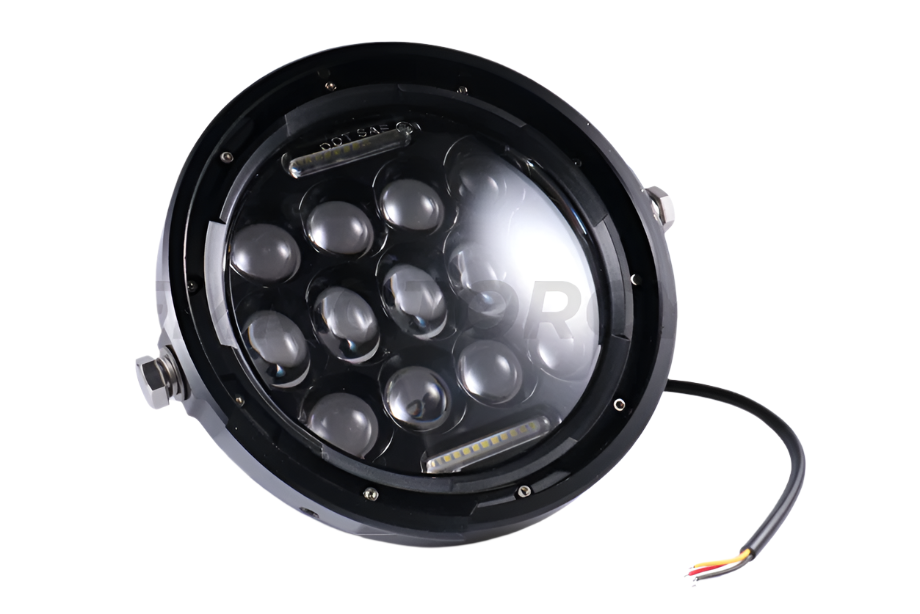

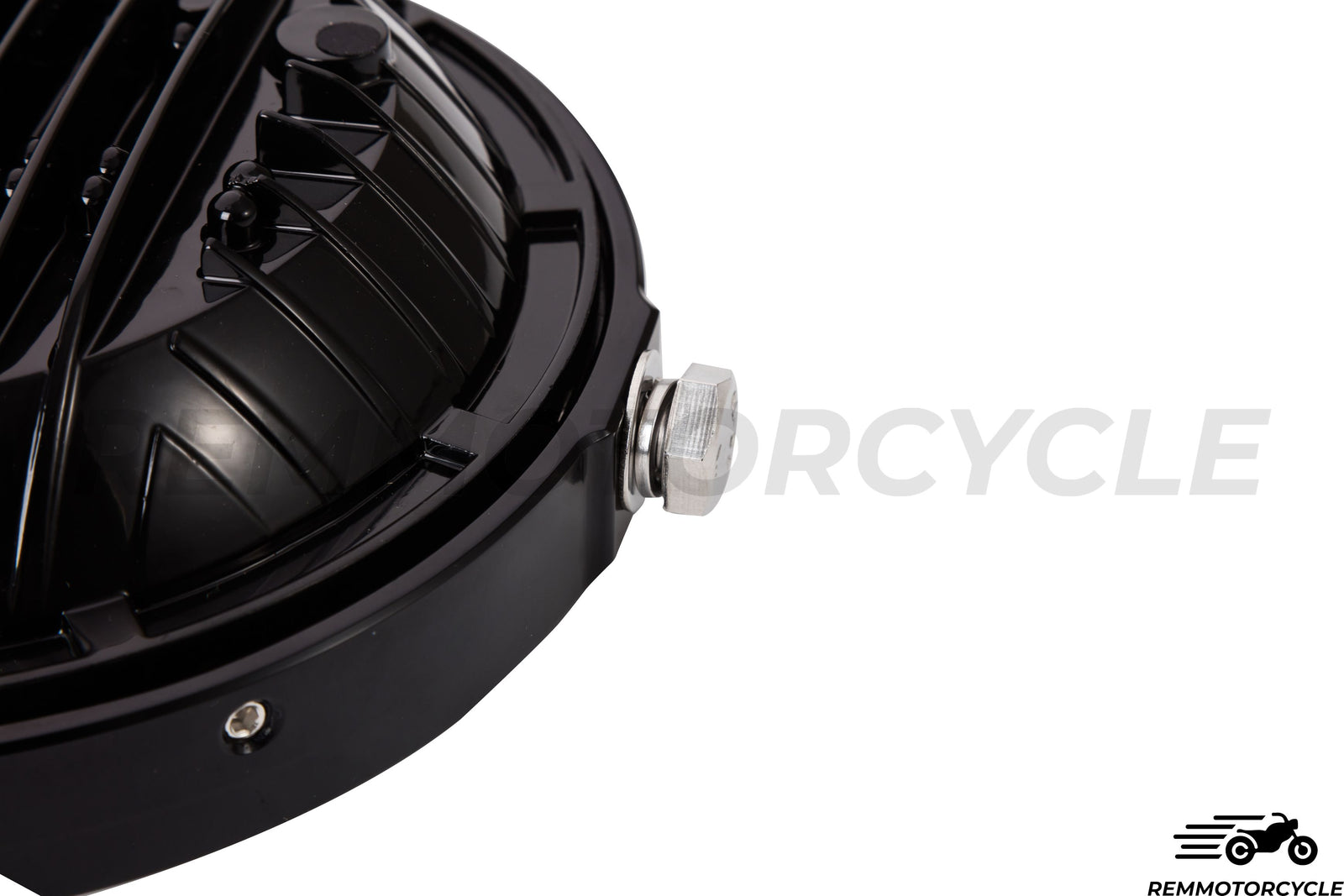

7 -inch Multi DRL LED projector

LED motorcycle headlight, projector style, to be installed in place of the original headlight.

An LED headlight helps improve the lighting and look of your motorcycle.

This model is the projector version of the headlight multi DLR.

It is composed of a LED spotlight and a support ring.

The support ring replaces the often too imposing headlight shells. In addition, the style is more modern, more lively.

The lighting is as follows:

• Daytime running lights
• Low beams
• high beam

The spacing between the 2 screws to attach the headlight is 19 cm.

Products suitable for motorcycles such as: Honda / Yamaha / Suzuki / Kawasaki / Ducati / Royal Enfield / Norton.

Features :

• Operating voltage: 10-30V DC
• Waterproof rating: IP65
• Power: High beam 40W, Low beam 15W, DRL 8W
• Color: Black
• Material: Aluminum housing
• LED beam type: white
• Item weight: 890g

Dimensions:

• Support center distance: 19 cm
• Projector diameter: 15 cm
• Headlight depth: 5 cm

The correspondence of the wires:

• Black = negative
• Red = Daytime running lights
• White = High beam (full headlight)
• Yellow = Low beam

Daytime running lights:

Daytime running light, low beam and high beam:
