20 cm Multi Multi Motorcycle LED lighthouse with integrated indicators

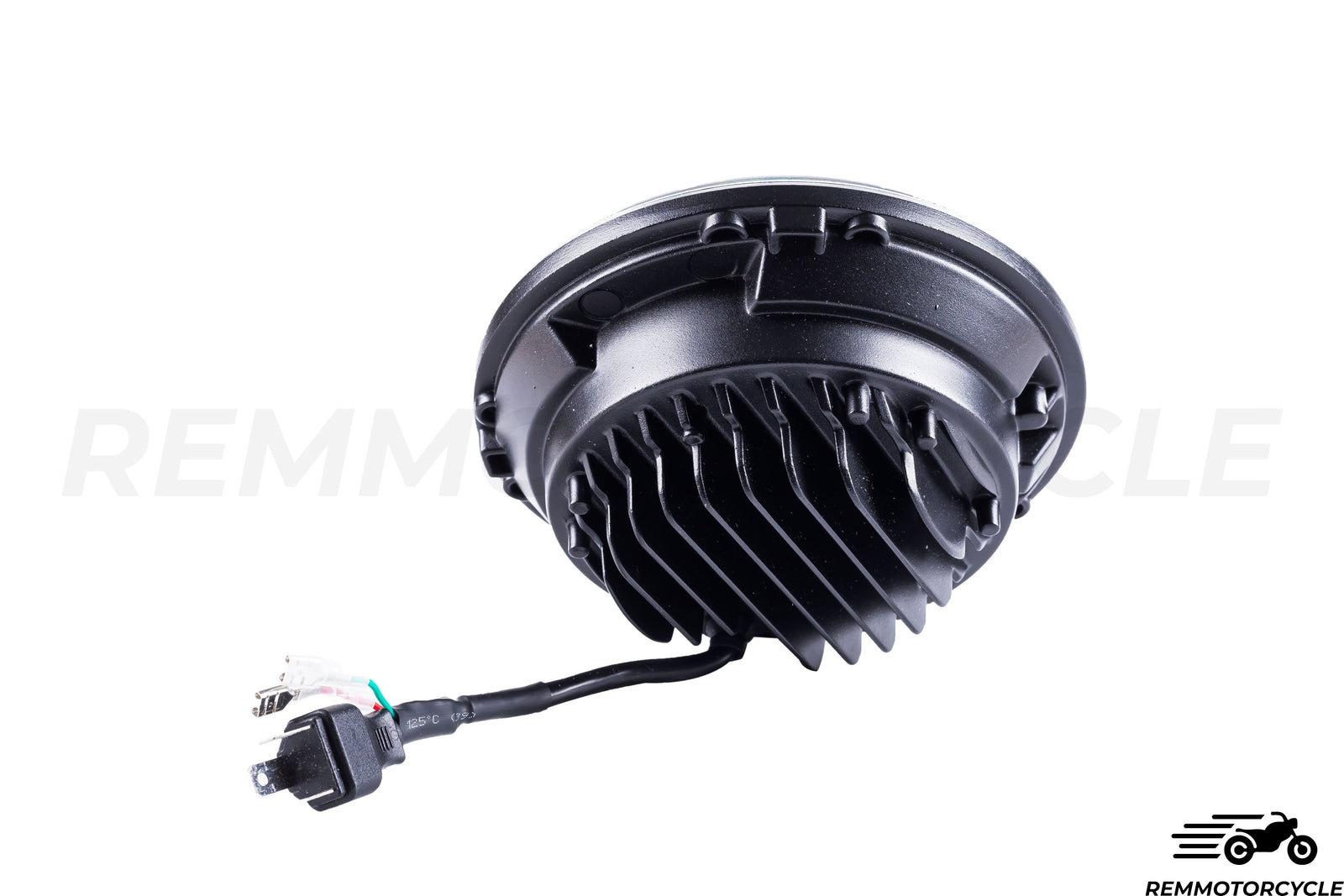

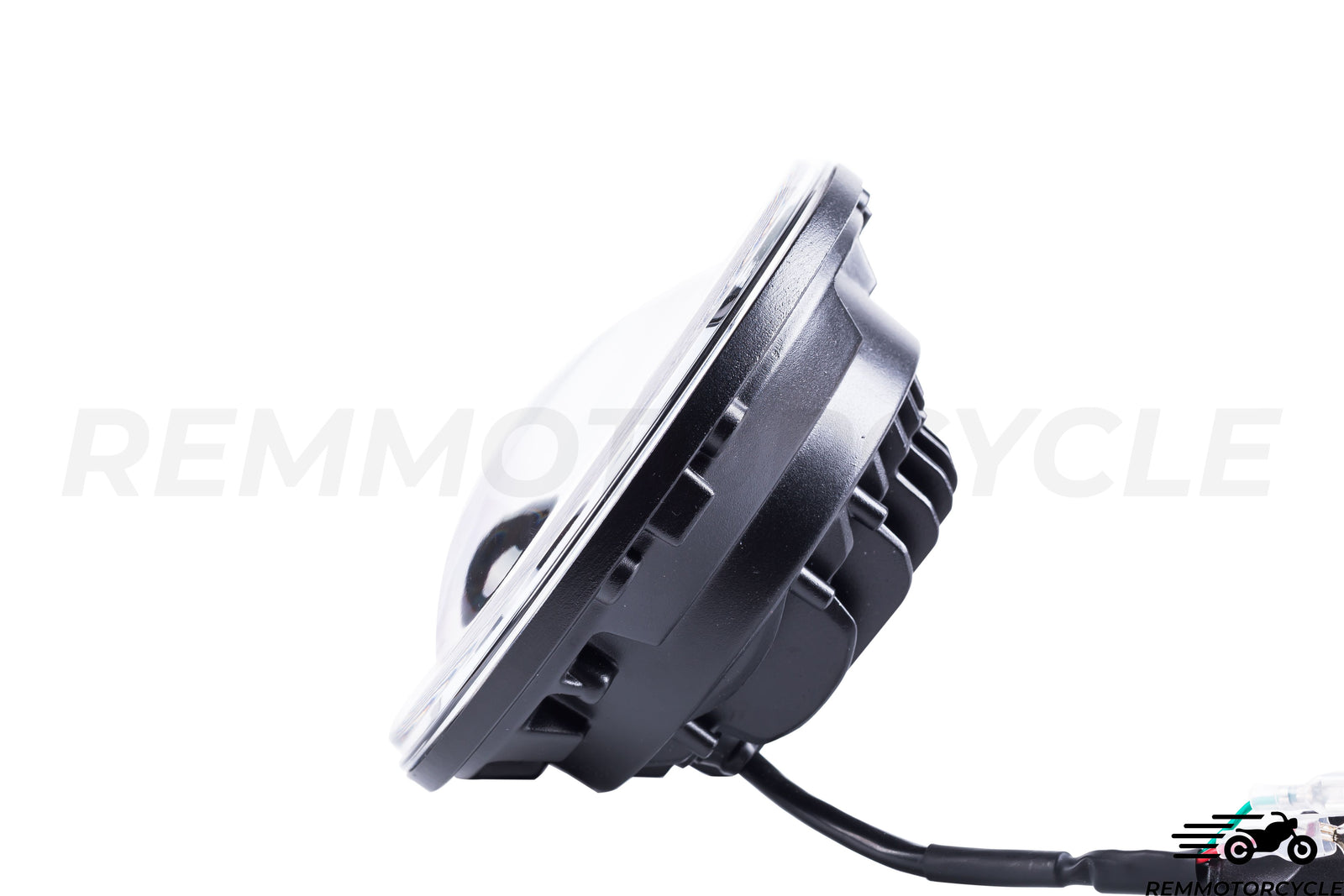

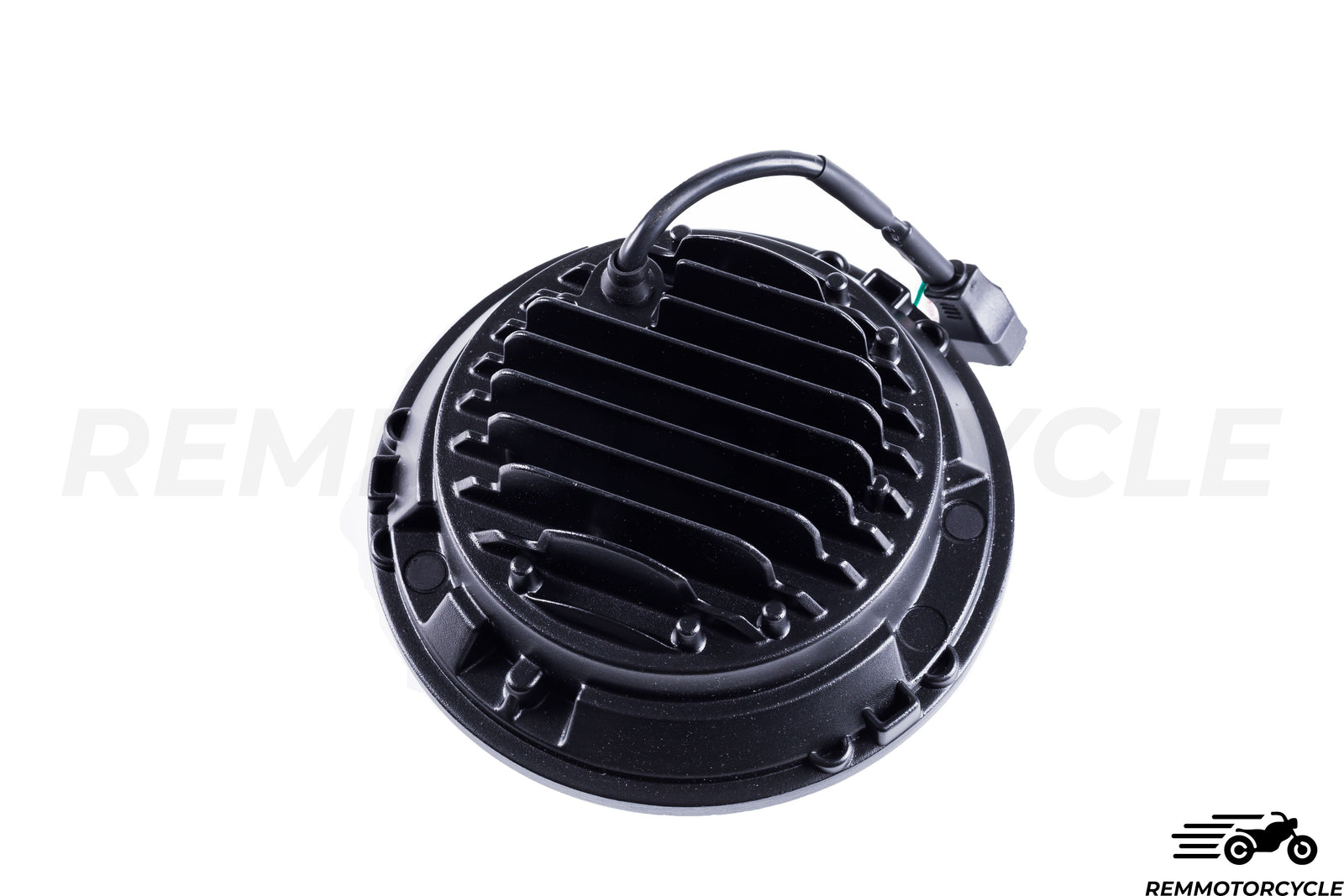

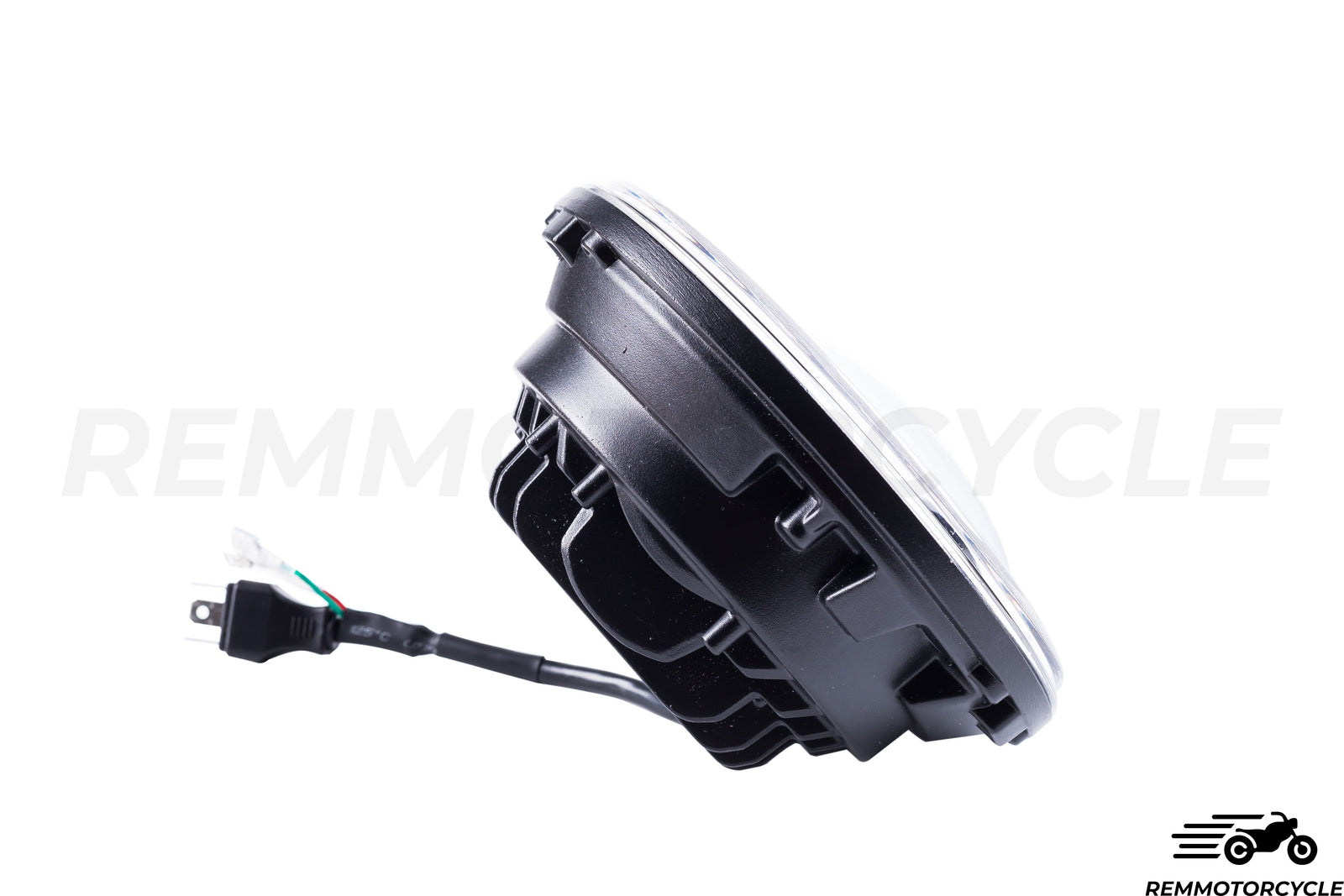

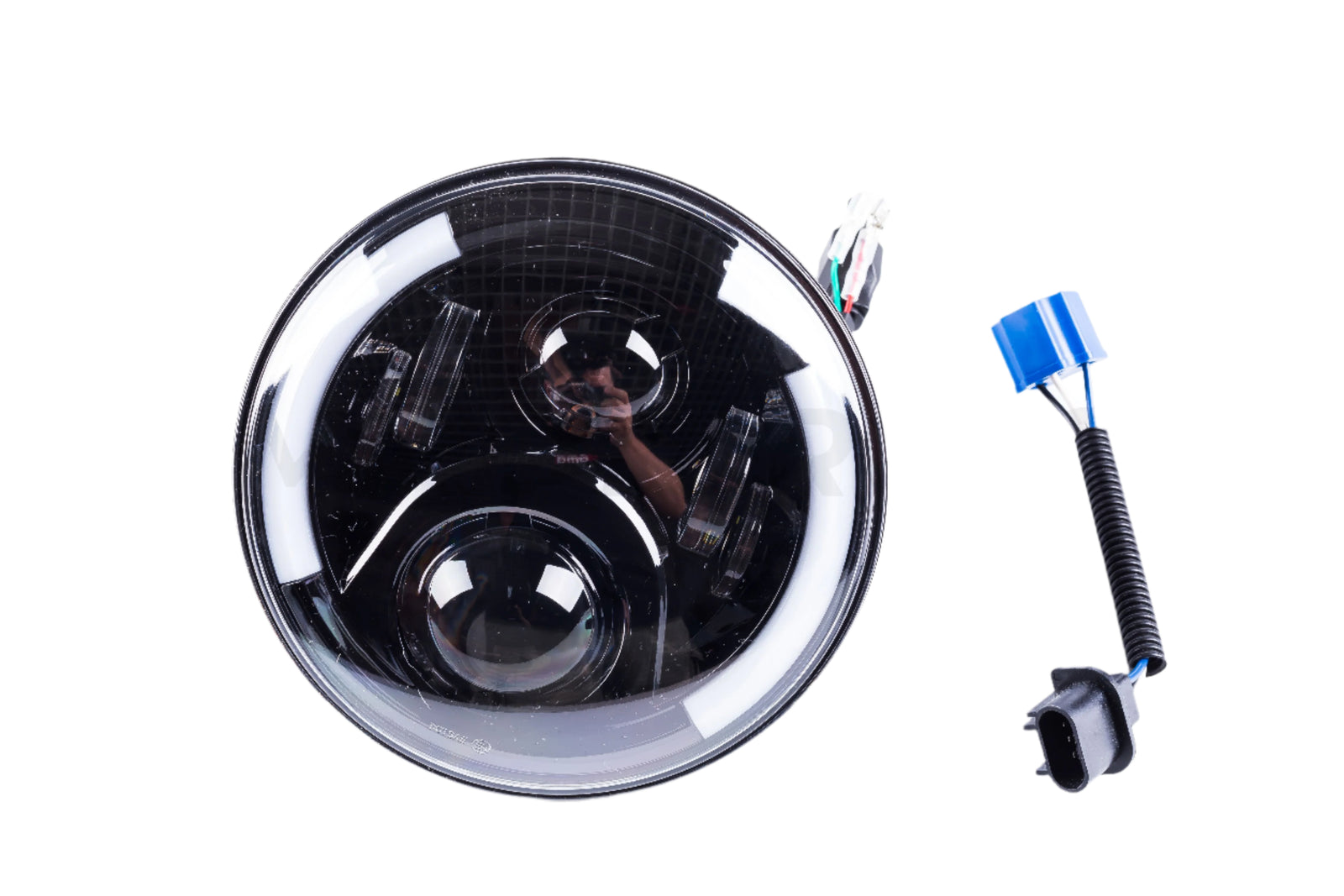

Large lighthouse to be installed in place of the original headlight.

This LED headlight for your motorcycle is efficient, This headlight will be perfect for your scrambler, café racer or bratstyle.

This projector can be installed in a pretty shell in black aluminum with chrome or fully chrome surround.

It has two diurnal on the sides which can be used as daytime running lights and indicators.

THE turn signals can be used at the same time as the daytime running lights.

Features :

• LED Power: 60W
• Operating voltage: 10-30V DC
• Waterproof rating: IP 67
• Power: High beam 60W, Low beam 45W
• Color: Black and Chrome or Chrome
• Material: Die-cast aluminum housing OR without housing
• Mounting bracket: stainless steel
• LED beam type: white
• Lifespan of more than 50,000 hours
• Projector size: 7 inches
• Item weight: 1kg 1.5kg with case

Dimensions :

• Support center distance (with shell): 17.3cm
• Headlight diameter: 20 cm
• Headlight depth (with hull): 17 cm

Presentation video:

Installation examples:

Here is the correspondence of the wires:

• Brown: Right orange LED
• Blue: left orange LED
• Yellow: Low beam
• Black: Negative
• Red: High beam
• Grey: White LED
