Harley front floating brake disc (before 1999)

Greatly improve the braking of your Harley

Designed with premium materials, this drive ensures exceptional reliability and smooth performance.

A premium braking solution, ideal for drivers looking for optimal quality.

WHY CHOOSE A FLOATING DISC?

Floating discs allow for more efficient heat dissipation, lighten unsprung weight, reduce vibration and increase durability. They are commonly used in high-performance vehicles to provide optimal braking capabilities.

QUALITY MATERIALS

• Stainless Steel type S42020 : This is the type of steel used by biggest brake brands.
• Aluminum type 6061 : Type 6061 aluminum is a very commonly used aluminum alloy in many applications due to its excellent mechanical properties, its resistance to corrosion. This material is used for the hub and for the six bushings.
• Manufacturing: CNC laser cutting and precision double grinding to the tightest tolerances to eliminate any vibration.

DESIGN

The Harley Floating Brake Disc offers a striking difference to your vehicle with its unique and timeless design. A combination of quality and style, this brake disc is the perfect addition for all Harley motorcycles.

6 BRANCHES

The handling of the motorcycle is optimized thanks to narrower tracks than those of a standard disc and the reduction of the number of bushings from 12 to 6, which reduces gyroscopic inertia.

FEATURES:

• Fitting position: front and rear
• Diameter: 292 MM or 320 MM
• Brake disc type: floating
• Brake disc thickness: 5MM
• Number of holes: 5
• Inner diameter: 50.5 MM
• Diameter of fixing points: 82.5 MM
• Weight: 1355 g

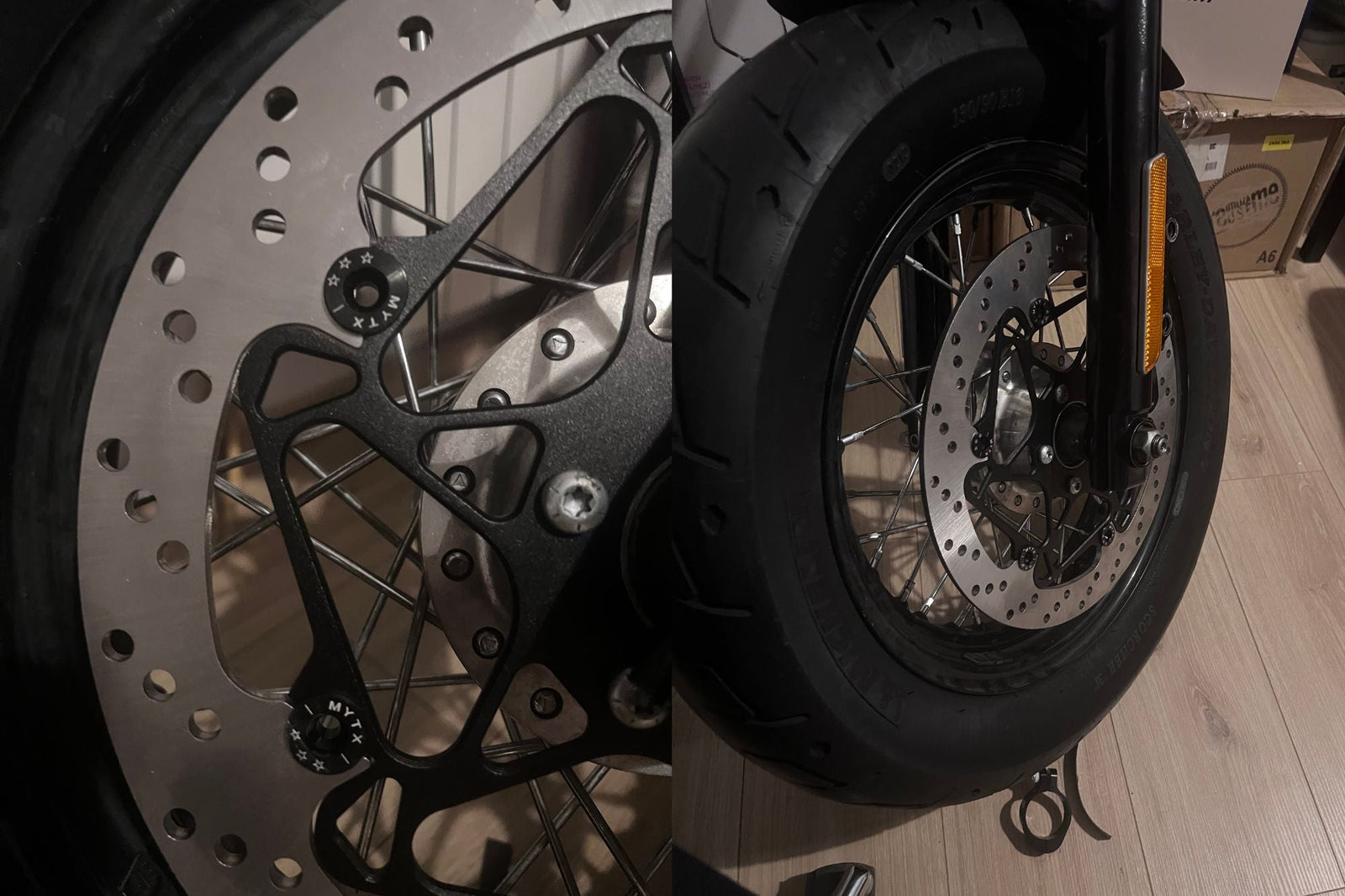

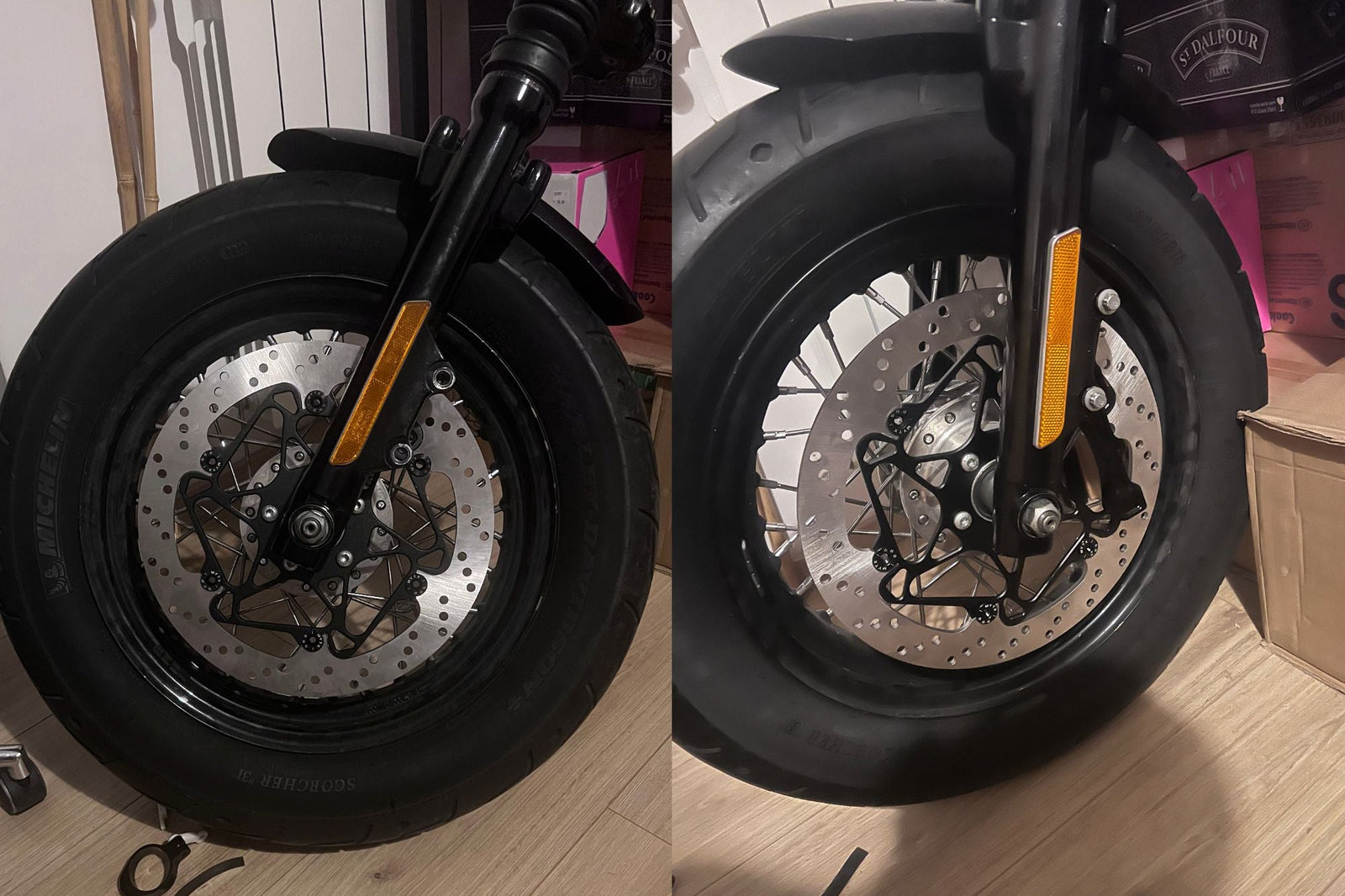

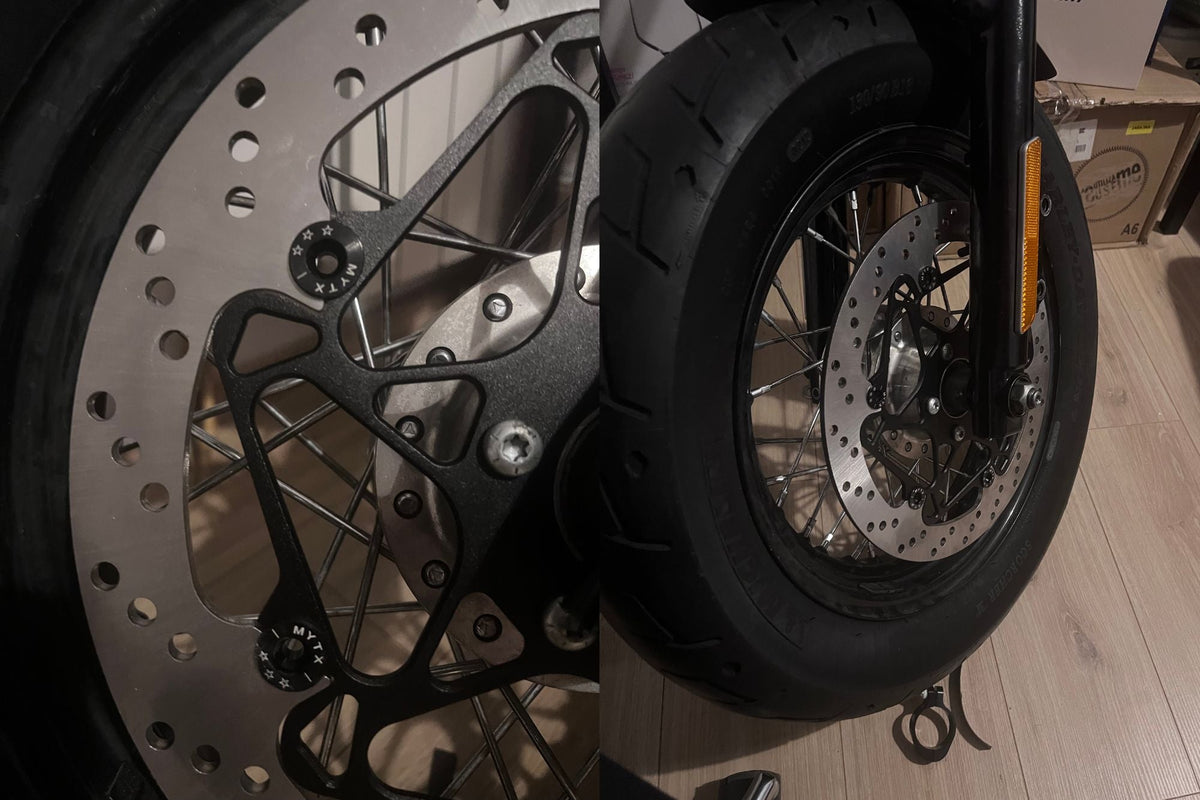

Example of installation on a Sportster Forty-Eight in the photo gallery.

FOR WHICH MODEL?

The Harley-Davidson with five-hole disc, center distance of 82.5 mm and internal diameter of 50.5 mm.

292 MM (11.5") model:

Sportster

• 883 XLH (1985-1999)
• 1000 XLH (1979-1985)
• 1000 XLS Roadster (1982-1983)
• 1000 XLS Roadster (1984-1985)
• 1000 XLSA Roadster Anniversary (1982)
• 1000 XLX (1983)
• 1000 XLX (1984-1985)
• 1000 XR (1983-1985)
• XL1000 (1978)
• XLH 1000 (1979-1985)
• 1100 XLH (1985-1988)
• XLH 1100 Anniversary (1987)
• XLH 1100 Liberty Edition (1986)
• 1200 XLH (1987-1999)

Dyna

• 1340 FXD Super Glide (1995-1998)
• 1340 FXDB Glide Daytona (1991-1999)
• 1340 FXDB Glide Sturgis (1991-1999)
• 1340 FXDB Sturgis (1991-1999)
• 1340 FXDL Low Rider (1993-1999)
• 1340 FXDS Convertible (1994-1998)
• 1340 FXDWG Wide Rider (1993-1998)
• 1340 FXDWG 90th Anniversary (1993)
• 1340 FXDWG Anniversary (1998)
• 1340FXE (1985-1986)
• 1340 Super Glide (1981-1984)
• 1340 FXEF Fat Bob (1984-1985)
• 1340 FXLR Low Rider Custom (1987-1999)
• 1340 FXLR Low Rider Custom Anniversary (1993)

FXR

• 1340 Super Glide (1982-1999)
• 1340 Super Glide Reduced Effect (1988-1989)

FXRD

• 1340 Sport Glide GTE Grand Edition (1985-1986)

FXRP

• 1340 Police Lowrider (1995)

FXRS

• 1340 Low Glide (1982-1985)
• 1340 Low Rider (1985-1986)
• 1340 Low Rider Liberty Edition (1986)
• 1340 Low Rider Convertible (1990-1999)
• 1340 Low Rider Sport (1987-1999)
• 1340 Low Rider Sport Edition (1990-1999)

FLST

• 1340 Heritage Softail (1986-1999)
• 1340 Heritage Classic (1989-1999)
• 1340 Fat Boy Softail (1989-1999)
• 1340 Fat Boy Anniversary Softail (1998)
• 1340 Heritage Nostalgia Softail (1993-1999)
• 1340 Heritage Springer Softail (1998-1999)

FXST

• 1340 Softail (1984-1991)
• 1340 Custom Softail (1988-1999)
• 1340 Springer Softail (1989-1999)
• 1340 Bad Boy Softail (1995-1997)

FXWG

• 1340 Wide Glide Touring (1982-1983)
• 1340 Wide Glide Touring (1984-1986)

Touring

• 1340 FLHR Road King (1994-1999)
• 1340 FLHRCI Road King Classic (1998)
• 1340 FLHRCI Road King Classic Anniversary (1998)
• 1340 FLHRI Road King EFI (1996-1997)
• 1340 FLHS Electra Glide Sport (1987-1993)
• 1340 FLHT Electra Glide Touring (1985-1999)
• 1340 FLHTC Electra Glide Classic Touring (1985-1999)
• 1340 FLHTC Electra Glide Classic Liberty Edition Touring (1986)
• 1340 FLHTCI Electra Glide Classic Anniversary Touring (1998)
• 1340 FLHTCI Electra Glide Classic EFI Touring (1996-1998)
• 1340 FLHTCU Ultra Electra Glide Classic Touring (1990-1992)
• 1340 FLHTCU Ultra Electra Glide Classic Touring (1995-1999)
• 1340 FLHTCUI Ultra Classic Electra Glide FI Touring (1995-1999)
• 1340 FLT Tour Glide (1984-1985)
• 1340 FLTC Tour Glide Classic (1984-1991)
• 1340 FLTCU Ultra Tour Glide Classic (1989-1994)
• 1340 FLTCUI Tour Glide Ultra Classic (1996)
• 1340 FLTH Tour Glide (1984)

320MM MODEL

For models equipped with an offset tab and an improved caliper like the kit Freespirit or Remmotorcycle.

DISC INSTALLATION / ASSEMBLY

>Installation guide<
